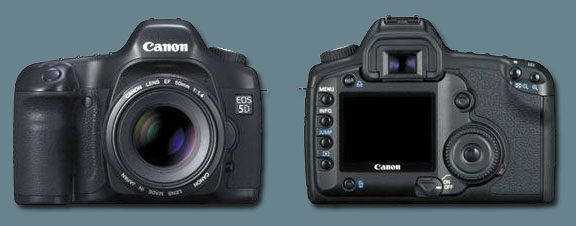

“The discreet full frame EOS 5D is the camera many photojournalists and agencies have been asking us for,” said Mogens Jensen, Head of Canon Consumer Imaging Europe. “It will be an indispensable piece of equipment for a wide range of professionals – from contemporary wedding to reportage photographers.”

Marking five years since Canon’s first CMOS image sensor appeared in the EOS D30, the release represents Canon’s fifth new CMOS sensor to be released since April 2004. “CMOS sensors are a critical technology advantage driving Canon’s rapid digital SLR development,” remarked Jensen.

Equivalent in size to a frame of 35mm film, the camera’s 35.8 x 23.9 mm CMOS sensor gives photographers a full angle of view without magnification or cropping effect. It provides tighter control over depth of field and improves image quality by capturing more light with its large pixels.

Key features

Super responsive, the EOS 5D is driven by the same DIGIC II processor found in Canon’s EOS-1D professional range cameras.

Protected with a rugged yet lightweight magnesium alloy exterior, the camera also features new Picture Style pre-sets, a new hi-resolution 2.5” LCD monitor, 9-point auto focus with 6 invisible Assist AF points to improve tracking performance, compatibility with Wireless File Transmitter WFT-E1, custom mode allowing fast recall of user defined camera set-ups, USB 2.0 Hi-Speed interface for fast downloads and 1/8000 – 30 second shutter speed with X-sync at 1/200s.

The CMOS advantage With five years of in-house CMOS development since the original EOS D30, Canon’s latest CMOS sensor features 12.8 Megapixels, and the same second generation on-chip noise reduction circuitry used on the EOS-1Ds Mark II. This effectively suppresses random noise and eliminates fixed-pattern noise for extremely clean, hi-fidelity images. Wide 100-1600 ISO speed range is extendable to L:50 and H:3200. Large 8.2mm pixels allow the capture of a superior dynamic range, enabling the reproduction of subtle tonal gradations in shadow, midtone and highlight areas.

Improved in-camera control New Picture Style pre-sets simplify in-camera control over image quality. Delivering more immediately usable JPEG images straight out of the camera without need for post-production, Picture Style pre-sets can be likened to different film types – each one offering a different colour response. Within each easily selectable pre-set, photographers have control over sharpness, contrast, colour tone and saturation.

The pre-sets include:

Standard – for crisp, vivid images that don’t require post-processing

Portrait – optimises colour tone and saturation and weakens sharpening to achieve attractive skin tones

Landscape – for deep greens and blues with stronger sharpening to give a crisp edge to mountain, tree and building outlines

Neutral – ideal for post-processing

Faithful – adjusts colour to match the subject colour when shot under a colour temperature of 5200K

Monochrome – for black and white shooting with a range of filter effects (yellow, orange, red and green) and toning effects (sepia, blue, purple and green)

Three user-defined entries allow creation of additional variations on the in-camera styles. Alternative Picture Style files can be down loaded from Canon’s website.

Picture Style replaces internal image processing previously controlled by setting processing parameters and colour matrix. It is also supported by the supplied Digital Photo Professional and RAW Image Task software.

New LCD monitor

For improved image review and menu readability, the EOS 5D is fitted with a new large-size high-resolution 2.5” 230K pixel poly-silicon TFT LCD monitor. The improved screen retains brightness and visibility throughout a wide 170? angle of view, both vertically and horizontally, making it easy to view images when the camera is mounted in a fixed position.

Auto focus

A newly developed 9-point auto focus system features six additional invisible Assist AF points located inside the spot-metering circle. These points come into effect when the camera is switched to AI SERVO AF with the centre focus point selected and are automatically used to improve the camera’s subject tracking performance.

Ergonomics and control

The ‘Premium EOS’ design features a magnesium alloy exterior with rubberized grip surfaces. The discreet and lightweight compact body measures just 152 x 113 x 75mm and weighs only 810g making it two thirds the volume and weight of the EOS-1Ds Mark II.

In a handy new feature, current camera settings can be stored and assigned to the C (camera settings) position on the Mode Dial. This allows photographers to switch quickly between two completely different camera set-ups without having to switch bodies – ideal for photographers who need to rapidly switch their cameras from an indoor to outdoor shooting condition, for example. Exposure mode, ISO speed, AF mode, drive mode, Picture Style, white balance and custom functions are all stored in the custom setting. There are 21 custom functions with 57 user-definable settings to enable photographers to configure the camera for their preferred way of working.

Connectivity

With the optional Wireless File Transmitter WFT-E1, photographers can work cable-free as full-frame image files can be transferred automatically through a wireless LAN to a computer in seconds[1].

A USB 2.0 Hi-Speed interface allows rapid transfer of images from camera to computer, ideal for shooting straight to hard drive with the camera tethered to a computer in a studio environment, thus providing full screen previews of images as they are shot. The EOS 5D also has a Video Out interface to allow playback and review on a TV monitor, and is PictBridge compliant to support direct printing to any compatible photo printer without the need for a computer. It takes both CompactFlash Type I and Type II cards, including cards of 2 Gb capacity and larger.

Compatibility and accessories

The EOS 5D offers complete compatibility with all Canon EF lenses[2], providing photographers with access to a vast range of lenses with focal lengths from 14 to 600mm.

The camera’s launch coincides with the release of the high performance EF 24-105mm f/4L IS USM – a lightweight Image Stabilizer lens. Completing Canon’s f/4L-series zoom lens range, the new lens complements the EF17-40mm f/4L USM and EF70-200mm f/4L USM lenses. An ideal match for the lightweight EOS 5D, these lenses are designed for professional photographers requiring high quality lightweight lenses with a fixed aperture throughout the zoom range.

Also compatible with EX series Speedlites and other EOS accessories, the camera provides photographers with a highly adaptable and flexible camera system. Canon’s E-TTL II flash metering ensures accurate flash exposures by taking into account such factors as lens distance information, ambient light readings and the detection of reflective objects in order to calculate flash output.

The BG-E4 is a new battery grip designed especially for the EOS 5D. Constructed with the same magnesium alloy as the camera’s exterior, it has a solid and comfortable hold. The grip can accommodate two BP-511A/514/512/511 battery packs or six AA batteries[3]. The Battery Grip BG-E4 features a shutter release button, AE/FE lock button, AF point selector and main dial to enable comfortable use of the camera when held vertically.

The camera’s focussing screens are interchangeable: in addition to the Standard Precision Matte (Ee-A) focussing screen supplied with the camera, Precision Matte with Grid (Ee-D) and Super Precision Matte (Ee-S) screens are available.

The EOS 5D supports the optional Data Verification Kit DVK-E2 v2.2, which verifies the authenticity of images taken with the camera.

New software

The EOS 5D is supplied with the EOS Digital Solution Disk v11, which includes a new version of Canon’s Digital Photo Professional (DPP) RAW processing software – now at version 2.0. DPP now supports RAW images shot on all EOS digital cameras from the EOS D30 onwards, and includes support for Picture Styles. Improvements and additions are aimed at improving functionality and workflow efficiency for professionals, and include: easy image selection with three levels of check marks; real-time adjustment of sharpness; improved image correction (Copy Stamp); enhanced image transfer function, making single image transfer to PhotoShop possible; extended colour space support, now including Apple RGB and ColourMatch RGB; and improved usability of the CMYK simulation function.

Also provided is on the EOS Digital Solution Disk v11 is ZoomBrowser EX (PC) and ImageBrowser (MAC) v5.5 for managing images, EOS Capture v1.5 for remote shooting, PhotoStitch v3.1, PhotoRecord v2.2 (PC) and RAW ImageTask v2.2. The EOS 5D is compatible with CANON iMAGE GATEWAY[4], which provides a 100 MB online photo album.

Comprehensive range

This new category camera adds to Canon’s already comprehensive D-SLR range. In terms of speed and resolution, Canon has the leading performance camera in every D-SLR segment, all launched since April last year:

EOS-1Ds Mark II – 16.7 Megapixel full frame 35 mm sensor, 4fps
EOS-1D Mark II N – 8.2 Megapixel APS-H size sensor, 8.5 fps
EOS 5D – 12.8 Megapixel full frame sensor, 3 fps
EOS 20D – 8.2 Megapixel APS-C size sensor, 5 fps
EOS 350D Digital – 8.0 Megapixel APS-C size sensor, 3 fps

Pricing, availability and reader enquiries

The EOS 5D will be available from October 2005 for £2539.99 RRP inc. VAT/ €3699.99 RRP inc VAT.

Reader enquiries UK – 08705 143723 / www.canon.co.uk
Eire – (01) 2052400 / www.canon.ie

[1] Depending on selected file size, quality, network speed and traffic levels
[2] Excluding EF-S lenses
[3] When using AA batteries the maximum continuous shooting rate is 2.5fps
[4] CANON iMAGE GATEWAY is not available in all European countries, please see www.cig.canon-europe.com for available countries
