Mamiya ZD Specifications
October 5, 2004 (Updated October 2, 2005)

Mamiya ZD & ZD Digital Back | Mamiya ZD Specifications

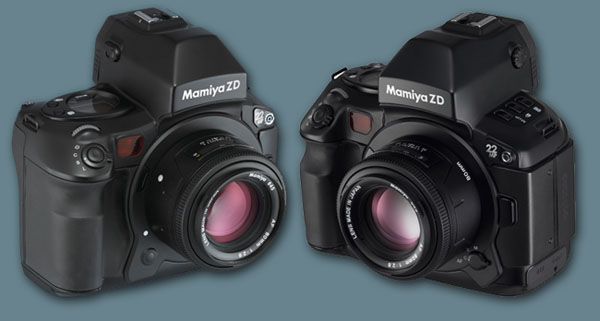

Mamiya ZD DMF SLR
Camera Type Interchangeable Lens Digital Autofocus SLR Camera
Lens Mount Mamiya 645AF
Number of Media Card Slots 2 (CF & SD)
Image Size 48mmx 36mm
Total Pixels Approx. 21.80 Million Pixels
Active Pixels Approx. 21.50 Million Pixels
IR Cut Filter Built-In
Low-pass Filter Optional (User Replaceable)
Shutter Electronically-Controlled Vertical-travel Metal Focal-plane Shutter
Continuous 1.5fps
Max Shots / Burst 11 shots
Recording Format Uncompressed: RAW
Compressed : JPEG (Exif 2.2)
Simultaneous Recording Possible (RAW & JPEG)
Image Size Modes (JEPG) Large, Medium, Small
Image Quality Modes(JPEG) Fine, Normal, Basic
Color Matrix Adobe RGB sRGB
White Balance Auto / Daylight / Overcast / Shade / Fluorescent light / Tungsten / Preset 1 / Preset 2 / Fine Adjustment / Color Temperature Setting
Sensitivity ISO 50 ~ 400 (1/3 Steps)
LCD Monitor Low Temp. Polysilicon TFT Color 1.8in.(Approx. 13M Pixels) Brightness Adjustable
Finder Eye-Level Prism Viewfinder (fixed) Magnification:x0.75 Field of View: 98%
Auto Focus TTL Phase Difference Detection
Exposure Control Modes Aperture-priority AE (Av), Shutter-Speed Priority AE (Tv), Programmed AE(P), Manual (M), Bulb (B)
Light Metering TTL Metering: Average, Center-weighted, Variable Ratio, Spot
Auto-Bracketing Number of Shots : 2, 3, or 5 Frames (Single & Continuous) F Steps +/- 0.3, +/- 0.5, +/- 0.7, +/-1
Video output NTSC, PAL
Interface IEEE1394 (4-pin)
Power Source Rechargeable Lithium Ion Battery & AC
Weight 1,200g (~42.3oz)
Dimensions (mm) 161.5mm(W) x 152mm(H) x 90.8mm(D)
Dimensions (inches) Approx. 6.4''(W) x 6.0''(H) x 3.6''(D)
MSRP $12,500
.
